Prosimgraphspro contains a series of applications useful to simulate processes, draw/interrupt 2D/3D graphs and draw chemical diagrams. Easy to use applications for the designer. Ideal for engineering, scientific professionals, students and educational personnel.

ProsimGraphsPro is represents a Process simulation, graphing package, which is also incorporated within CHEMMATHS.

Prosim contains 20 of each of the following equipment items :

oFLOWMETERS

oPUMPS

oVESSELS

oCONTROL VALVES – 2 WAY VALVES

oVALVES – 3 WAY, DIVERT VALVES

Process Aspects :

oProcesses can be saved, printed, modified at ease.

oProcess time can be adjusted, process results may be saved in a text file.

oAdjustment of flowrates is per second.

oMultitude of process designs maybe achieved.

oEach item flowrate may be adjusted in relation to other process items behaviour.

oIncorporates a Calculator.

oEach item contains its' own property display box.

oEach process item is moveable and lines are drawn to each linking item.

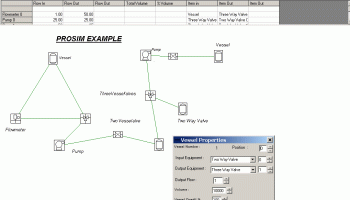

The following image represents a process in operation. It shows all the process items, linking lines and data grid. The green lines represent fluid flow through the pipes. The process items can be used to simulate other process equipment not just the ones illustrated.
