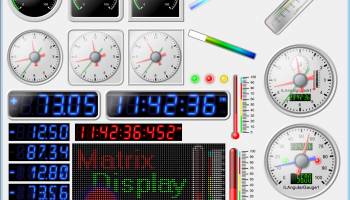

Set of .NET 2.0-4.5 GDI+ rendered Visual Instruments. Also includes a Visual Graphical Editor for Codeless Development. Contains: - LED control with On/Off states. - LED control with multiple states. - LED control with gradually changing intensity and/or color based on the input value. - Progress bar. - Thermometer gauge. - Angular gauge. - Linear gauge. - Analog clock. - 7, 9, 14 or 16 segment clock. - 7, 9, 14 or 16 segment gauge. - 7, 9, 14 or 16 segment indicator. - 7, 9, 14 or 16 segment text. - Spectrum Indicator. - Matrix display. - Rectangular, or elliptic panel covered with glass. Other features: - OpenWire Enabled. - Composite components - The components can also plug into each other, so an analog gauge can contain Thermometer, Clock, Segment display, or any other InstrumentLab or PlotLab control. - Matrix component rendering - The matrix can render any other InstrumentLab or PlotLab control, including another Matrix. - VideoLab layering integration - All components can be rendered inside video as a video layer in the TVLDraw component of VideoLab. - VideoLab video display hosting and rendering - The components can contain image display, and use it as internal background. The Matrix can render video by using the ImageDisplay. - PlotLab integration - All components can be rendered inside a Scope or Waterfall as backgrounds. The Waterfall and Scope can be hosted in InstrumentLab components. - GDI+ rendered. - Included counters and time measuring components. Free for non-commercial use.
