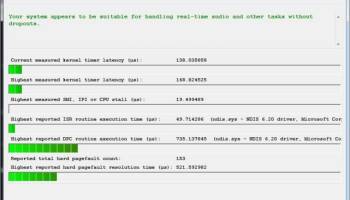

LatencyMon checks if a system running Windows is suitable for processing real-time audio and other tasks. LatencyMon analyzes the possible causes of buffer underruns by measuring kernel timer latencies and reporting DPC and ISR excecution times as well as hard pagefaults. It will provide a comprehensible report and find the kernel modules and processes responsible for causing audio latencies which result in drop outs. It also provides the functionality of an ISR monitor, DPC monitor and a hard pagefault monitor. LatencyMon will display the highest latencies of a kernel timer and report the highest execution times of ISR and DPC routines as well as hard pagefaults. In most cases it will also find the drivers and processes responsible for executing them. It will create a comprehensible report which also displays all sampled data in a detailed manner allowing you to perform in-depth analysis.

The Windows thread disptacher (also known as scheduler) which is part of the kernel executes threads based on a priority scheme. Threads with higher priority will be given a longer execution time (also known as quantum or time slice) than threads with a lower priority. However the kernel also knows other types of units of execution known as interrupt service routines (ISRs). Devices connected to the system may interrupt on a connected CPU and cause their interrupt service routines to execute. An interrupt can occur on the same processor that an audio program is running on. Any thread that was running on the processor on which an interrupt occured will be temporarily halted regardless of its priority. The interrupt service routine (ISR) is executed and may schedule a DPC (Deferred Procedure Call) to offload an amount of work. The DPC will most likely run immediately on the same processor which means the audio application will halt until both the ISR and the DPC routines have finished execution. That is because ISRs and DPCs run at elevated IRQL which means they cannot become preempted by the thread dispatcher (scheduler). Therefore to guarantee responsiveness of the system, ISR and DPC routines should execute as fast as possible. Guidelines say that they should not spend more than 100 ?s of execution time however this is often not reached due to hardware factors beyond the control of the driver developer. If execution time gets too high, the audio program may be unable to deliver audio buffers to the hardware in a timely manner.

Windows uses a concept of virtual memory which relies on the page translation system provided by the CPU. Whenever a memory address is requested which is not available in physical memory (not resident), an INT 14 will occur. The OS provided INT 14 handler will decide how to proceed next. If the page in which the address resides is known to Windows but not resident, Windows will read in the required page from the page file. That is known as a hard pagefault and can take a lot of time to complete. If the page can be read in from the hard disk cache, the price will be limited. However if it needs to physically read in the data from disk sectors this takes a lot of time. If an audio program hits a hard pagefault while it is playing it will almost certainly have audible consequences recognized as dropouts, clicks or pops.
