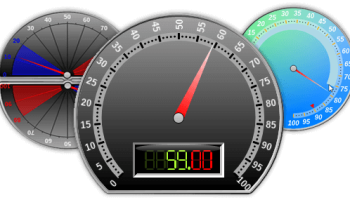

The NOV framework now includes several new widgets implementing linear and radial gauges as well as numeric indicators: Linear Gauge Widget: - Support for horizontal and vertical linear gauges. - Support for multiple indicators with controllable shape, range, value, appearance etc. - Support for multiple scales per linear gauge with attached indicators. - Support for various visual effects (glass and gel) improving the appearance of the gauge. Radial Gauge Widget - Support for radial gauges with controllable orientation and sweep angles. - Support for multiple indicators with controllable shape, range, value, appearance etc. - Support for multiple scales per linear gauge with attached indicators. - Support for various visual effects (glass and gel) improving the appearance of the gauge Numeric Led Display - Support for different display styles - 7 segment, 14 segments and 5x7 segments displays. - Support for different cell appearance and formatting. - Support for various visual effects (glass and gel) improving the appearance of the led display. The Linear and Radial Gauge share a common scale model that supports lots of settings including: - Major grid lines. - Scale title. - Support for custom value and range labels. - Support for different scale ruler styles. - Scale strips (displayed at the gauge plot). - Scale sections allowing you to specify ranges of the scale with different appearance. - Support for inverted scales. - Linear and logarithmic scaling. - Support for different step modes including automatic step, custom step, custom steps, origin value etc. - Support for custom major and minor scale ticks.
