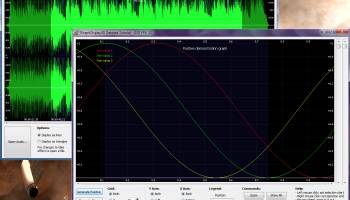

TGraphDisplay3D is a Delphi component for use in Win32 and Win64 (Windows 7/8/10) software.
It's purpose is to provide display of graphs, in the most powerful and efficient (yet easy to use), Direct3D display way. As it uses 3D accelerated graphics it can easily display more then a million values and still maintain real time interaction and decent FPS. It provides functions like positive, mono, stereo or multiple display type of graphs, configureable colors, making a slection, adding markers, animated zoom in and out, automatic amplitude adjusting, customized axis text, etc.
TGraphDisplay3D also has the powerful ability to display audio sample data. In addition to the functions mentioned before, there is support for displaying mono, stereo or multi-channel audio files (5.1. etc), playback position display, quick-playing from click, etc.

Features:
Uses pure Direct3D 11 3D accelerated graphics
Positive, Mono, Stereo and Multi display type
Line or "gradient triangles" mode display
Automatic or manual amplitude adjustment
Real-time oscilloscope mode
Audio sample display support (functions to use the component as a sample display) with support for unlimited audio channels
Sonogram mode
Selection capability (per channel for a multi graph)
Add markers with name and custom color
Component uses an array of graphs, that is you can switch between multiple displays with one line of code
Animated display (zoom in and out, startup rotation effect)
Completely customizable (axis texts, colors, grids etc.)
Rendering is performed in a separate thread so the UI thread is free for use
Support for Win64 build mode
Fully object oriented Delphi type design
