Circuit Magic is an electrical circuits simulation program specifically designed for students teaching basics electronics, electrical laws & circuit theory. Unlike many electronic circuit analyzers, Circuit Magic can analyze circuits like a man. Circuits are simulated step by step, using natural solving strategy.

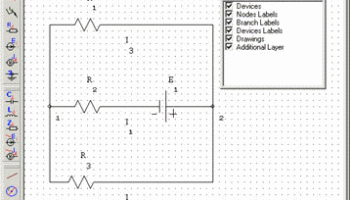

With Circuit Magic's easy to use Schematics editor you can construct electrical circuit schematics consisting of direct and alternating currents devices such as resistors, capacitors, inductors, impedances, DC voltage sources, DC current sources, AC voltage sources, AC current sources.

Circuit Magic's advanced analysis capabilities, allow you to analyze basic electronic circuits using Kirchhoff's Laws, Node Voltage & Mesh Currents methods.

FEATURES:

Easy to use electrical schematics editor, helping to make an easy task of circuit design

Circuit simulation capability to perform Alternating/Direct currents analysis using Kirchhoff's current and voltage laws, node voltage and mesh current method

Extended text editor

A graphics toolkit to allow text, lines, arc and rectangles to be added as circuit and phasor diagram annotations

Affordable Educational Pricing. Click here to learn Circuit Magic Pricing

Free user support
