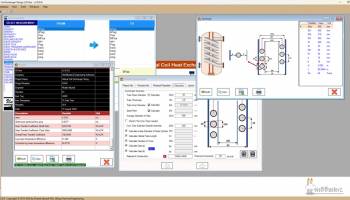

General features including: + Support S.I Units and English (U.S) Units of measurement. + Units converter includes 23 measurements units with 200-unit conversion + Add your own Nusselt correlation in three formats for using in calculations or use software correlations or enter your own value. + Calculate unknown Cold or Hot side temperature. Unknown exit temperatures on both sides or any two temperatures on both sides + Unknown Flow rate on either hot or cold side, or both sides if heat duty and temperatures are specified. + Pressure Drops for both shell and tube sides (frictional, inlet, outlet and total) + Overall heat transfer coefficients, heat transfer coefficients for shell and tube sides. + Area and heat load (duty) calculations + Support Core tube and Non-Core tube models + Vessel dimensions and length + Number of spiral turns for the helical tube and its length. + Estimate the Physical properties of pure components for more than 1450 fluids (Separate software included with full version, can be downloaded separately for demo); The physical properties software can also estimate mixture properties. (ALL ESTIMATION METHODS CURRENTLY SUPPORT LIQUIDS ONLY) + User database feature to allow user to store own fluid properties, add/delete fluids, Tube geometric sizes. This can then easily loaded in any project simulation. + Fouling factors + Plot temperature profile for counter current flow and cocurrnet flow. detect temperature cross. + Export Results summary to Microsoft Excel Engineering Datasheet format. Save/Load results. Generate/Print a summary of results + Display multiple cases in results grid + Export Results summary to .rtf file format that can be opened in Microsoft Word Limitations in this software are to the following: + Single tube units, multi tubes are not supported.
