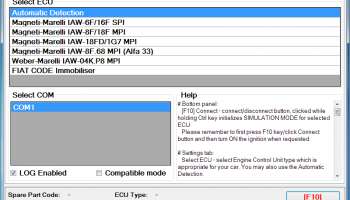

IAW Scan 2 is a succesor of the IAW ECU Scan application. It is designed to enable easy diagnostics of small FIAT engines Control Units.

Application works on any x86/x64 version of Microsoft Windows capable of running .NET 2.0 (namely from Windows 2000 to Windows 7) and uses a cheap and widely available ISO-KKL interface (requires additional ODB-2 to FIAT 3-pin adaptor cable). The interface can be either RS-232 or USB based.

It supports most of the FIAT cars which use the IAW-6F/8F/16F/18F/18FD Engine Control Units like Cinquecento 900/1100, Seicento 900/1100, Panda 1.0/1.1, Punto 55/60/75/86, Tipo/Tempra 1.6 also some Lancia (Delta/Dedra 1.8, Y 1.2) and Alfa-Romeo (145/146 1.3 BOXER) cars are supported.

Features:

Support for the popular VAG-COM KKL USB interface (with FIAT 3-pin adapter)
Live Data read out from Marelli IAW-x6F/x8F(D) and IAW-04K ECU (ECM)
Error Codes read out & Cancellation from Marelli IAW-x6F/x8F(D) and IAW-04K ECU (ECM)
Active Components Testing on Marelli IAW-x6F/x8F(D) and IAW-04K ECU (ECM)
Supported ECUs: Magneti-Marelli IAW-6F, IAW-8F, IAW-16F, IAW-18F, IAW-18FD, IAW-04K and IAW-1G7
Supported Cars:
# FIAT (Cinquecento 900/1100, Seicento 900/1100, Panda 1.0/1.1, Punto 55/60/75/85, Tipo/Tempra 1.6, Coupe S 2.0, Tipo 2000, Palio/Siena 1.0/1.4),
# Lancia (Y 1.2, Delta/Dedra 1.8, Delta/Dedra 2.0 16V),
# Alfa-Romeo (145/146 1.3 BOXER, 155 2.0 16V)
