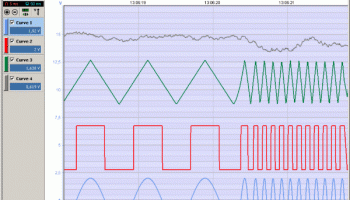

RealView is a measurement application, which records and plots measured values from analogue hardware devices in real-time. Several curves can be plotted into a single diagram. Several diagrams can be arranged on one or more pages if necessary. Plot options like pen width or pen color can be used to create perfectly styled diagrams.

RealView records and plots your measurement values in real-time. The sample rate can vary from 5 ms up to 30 min. There is no limit in the duration of the measurement. You can display several curves in the same plotter. Each curve can have their own Y-axis or all curves can have the same Y-axis.

You can arrange several plotters side by side, one below the other or on several pages. You can define the colors and design of the plotter just like you want. The curves can also get the color and width you want. This all helps you to create clearly arranged measurements.

After finishing the recording, you can zoom in every region of your curves. With simple mouseclicks you can zoom deep in or out of your curves. Some special zoom functions will always help you to get back, to your latest zoom, or to zoom your curves in an optimum range.

FEATURES:

· Several curves can be plotted into a single diagram.
· Several diagrams can be arranged on one or more pages if necessary.
· Plot options like pen width, pen color, background color, etc. can be used to create perfectly styled diagrams. You can even create your own plotter designs.
· Comfortable zoom functions are available on a single click to analyze plot details or to return to the plots overview.
· Setting markers makes it easy to read differential values of a plot, or to determine the amplitude or period of a sampled signal.
· A comfortable preview allows you to add comments or project data when printing diagrams.
· Export functions can be used to use measured data with other applications like MS-Excel, etc.
