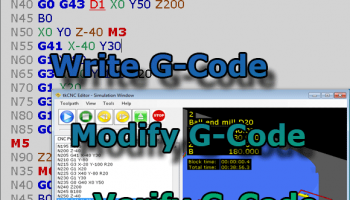

tkCNC Editor is a text editor, specially designed for editing of CNC code (G-code) for CNC machines. It is used by CNC programmers and operators for fast editing and verification of CNC code. tkCNC Editor version 3.0 has implemented these functions: - MDI (Multiple document interface) – allows editing of multiple CNC documents - Improved and fast G-code syntax highlighting - Unlimited Undo/Redo - Print Preview – Preview CNC documents preview before printing - All standard text editor functions such as Cut, Copy, Paste, Delete, Select All... - Fast CNC Program renumbering - Find/Replace function with special features for CNC code searching - Fast points import from AutoCAD - Generator of circular and rectangular point patterns (coordinates) - Smart CNC code templates - smart reuse of your CNC code - Various operations with CNC code registers such as: mirroring, renumbering, translation, 2D and 3D rotation, mathematical operations (+,-,*,/), sorting etc. - Improved conversion of CNC code from polar to Cartesian system and Cartesian to Polar - Absolute to incremental and incremental to absolute conversion - option for reversing toolpath direction - CNC code registers swapping - CNC code registers sorting (order in block) - Stripping of block numbers - improved 3D toolpath simulation/verification with possibility of toolpath export in DXF file - Editing of 2D machining contour visually and conversion from DXF to G-code in a few clicks - new machine wizard for definition of new machines - Degrees conversion from Degrees/Minutes/Seconds format to decimal format and vice versa - Automated CNC documents merging - 'QuickCalc' function implemented in text editor window for quick calculation of simple mathematical expressions directly in code - File comparison with ExamDiff
