Malz++Kassner CAD6 Industry is the comprehensive 2D/3D CAD/CAM solution for industrial use. In addition to all features of CAD6 Studio the program includes a CAM plug-in and a universal, script-based post-processor for flexible and efficient generation of CNC data for machine controllers.

The CAM plug-in supports the following machining procedures: milling, drilling, turning, water jet cutting, laser cutting, cutting, plotting, and positioning.

Included are post-processors for:
Universal DIN-ISO
Siemens DIN-ISO (Milling) and (Turning) with the SINUMERIK 8XX controller
Heidenhain DIN-ISO (Milling) and (Turning) with the TNC 4XX controller
Heidenhain Klartext (Milling) with the TNC 4XX controller
DATRON milling machine CAT3D
isel NCP
HP-GL
Minimal HP-GL (using PU and PD only)
and others.

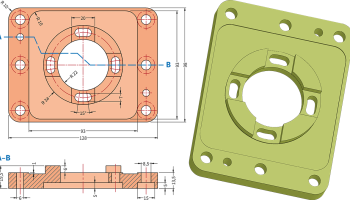

Commands like milling cutter compensation, pocket milling, milling order control, milling time calculation and a graphical 3D preview let you create drawings that are directly milled later. Extensive tool and machine settings, plus output of custom commands (such as cycles or sub-programs) by means of symbols, give you the complete control over what the post-processors finally output to the machine.
