LochMaster 4.0 is a developers tool for strip board projects. It has useful functions for designing, documenting and testing project boards. Therefore you will find functions like auto-generation of components lists, a connection test, a editable library with a large number of symbols and components, and many more. The latest version comes a long with new practical features, like parallel usage of mm, inch and hole grids. It is still compatible with all previous versions. You can load and edit any project you have already designed with LochMaster.

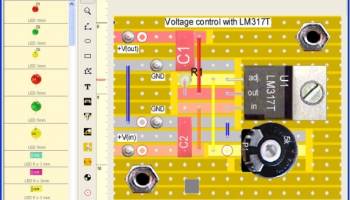

LochMaster displays both sides of the board, which are editable simultaneously. You can choose from several board types with different layouts and grids. All required functions, like wiring, splitting tracks, soldering, placing components, etc. are included and appear very realistic. The well-sorted and extendable library contains lots of material, that can be placed on the board: Electric and electronic components, mechanical elements, symbols and labels are available. Even “flying” soldering points are handled.

Boards
LochMaster has already a lot of standard-boards defined. If your desired board is not defined, you can create your own boards with the integrated board-editor. This enables you to work with almost every board you can get..

The component library

The integrated component-library includes beside the standard-components like resistors, diodes, capacitors, etc., a lot of mechanical elements like screws, nuts and spacer.

Because of the very realistic representation of the components, the display looks almost like a real board. This is not only a good looking feature, it helps you to keep the clearness.

Of course you can edit and create your own components and symbols. You can extend the library as you like.

The object-assistant helps you to create standard-components or often needed contours very easily.
